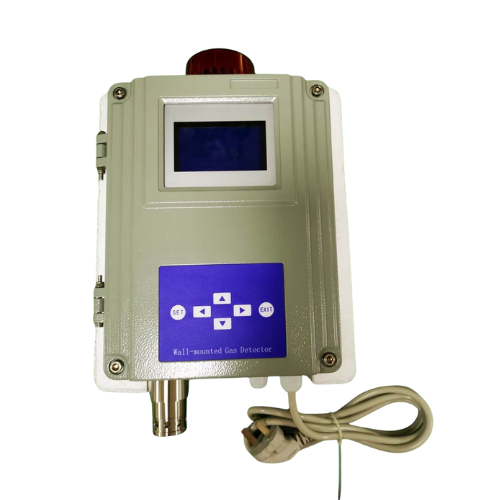

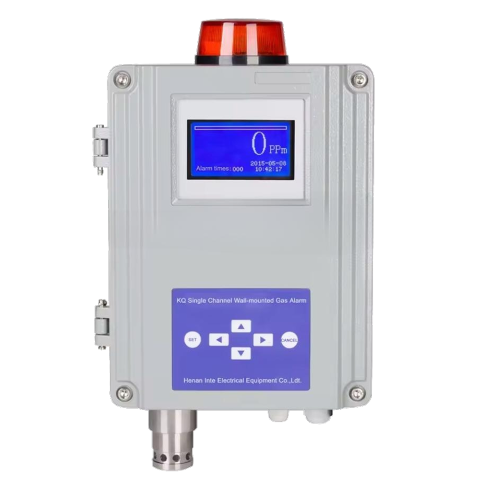

Overview
These series are single-gas detectors. When the concentration of the gases in the operating site reaches or exceeds the preset value, it will send a sound and light alarm. International standard 4-20mA signal output, can be directly connected to the factory DCS system(optional); RS485 digital signal can be connected with the factory’s principal computer(optional).
Features
- Adopts advanced embedded micro controller(16 digit ultra-low power consumption )
- 128*64 dot matrix ultra-large LCD
- The user can set the alarm level
- Displaying the time of the first alarm
- Real-time clock
- Replaceable modularized sensor
- Automatic calibration function reduces the measuring error.
- Automatically save alarm data for 1000 articles
- standby battery can work more than 100 hours under the condition that there is no alarm (optional)
- standard signal(4-20mA) can be directly connected to the factory’s DCS system (optional)
- digital signal is connected to the factory’s principal computer (optional)
Technical Specifications
| Detecting Gas | CO (Carbon Monoxide) |
| Sensor Life | 2–3 Years |
| Measurement Deviation | ≤ ±3% Full Scale (F.S.) |
| Response Time (T90) | < 30 seconds |
| Display Type | 128 × 64 Dot Matrix Ultra-Large LCD |
| Alarm Levels | Low & High; User-Defined Thresholds |
| Alarm Output | Relay Output: AC 220V / 2A |
| Signal Output (Optional) | 4–20 mA Standard Signal Output Direct DCS System Integration |
| Digital Output (Optional) | RS485 Digital Signal for Remote System / SCADA Interface |
| Working Temperature | Toxic Gas Detection: -20°C to +50°C (-4°F to 122°F) Combustible Gas: -40°C to +70°C (-40°F to 158°F) |
| Working Humidity | < 90% RH (Non-Condensing) |
| Working Voltage | AC 220V / 50Hz |
| Spare Battery (Optional) | ≥100 hours standby (alarm inactive); ≥8 hours for combustible gas detection |
| Sensor Module | Replaceable, modular design |
| Calibration | Automatic Calibration Supported |
| Real-Time Clock | Yes |
| Alarm Log Storage | Stores up to 1000 alarm records automatically |
| Embedded Controller | Advanced 16-bit Ultra Low Power Microcontroller |
| Protection Grade | IP65 |
| Weight | Approx. 1.2 kg (2.65 lb) |
