Overview

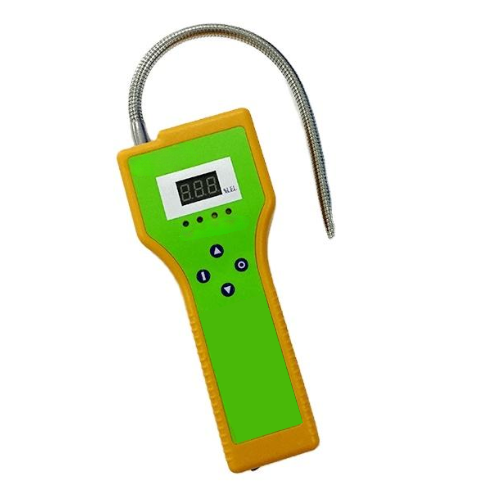

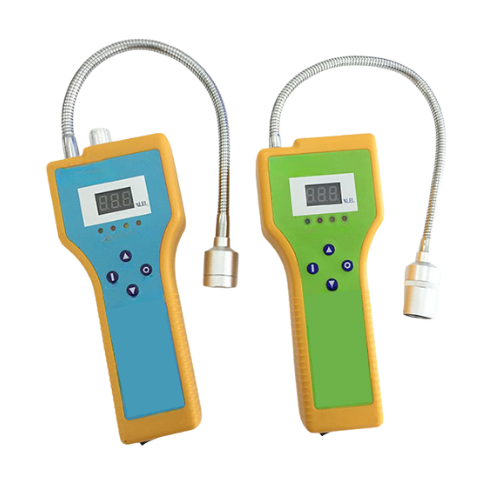

The Portable Multi-Gas Detector is a reliable and durable safety device designed for accurate detection of combustible gases in industrial environments. Powered by a long-lasting 2200mAh lithium battery, it uses advanced catalytic combustion technology and diffusion sampling for fast and precise measurements with a response time of ≤30s. Its digital tube display provides clear real-time readings, while the compact and lightweight design ensures easy portability. Built to withstand harsh conditions, it operates effectively in temperatures ranging from -25°C to +55°C and pressures of 86–106 kPa, making it an ideal choice for oil & gas, mining, chemical plants, and confined space applications.
Features
- Accurate Gas Detection – Effectively monitors combustible gases using advanced catalytic combustion technology.
- Fast Response – Provides quick readings with a response time of ≤30 seconds for immediate safety assurance.
- Durable Power Supply – Equipped with a rechargeable 2200mAh lithium battery for long-lasting performance.
- Easy Sampling – Utilizes diffusion sampling for reliable gas detection without a complex setup.
- Clear Display – Digital tube display ensures real-time, easy-to-read measurements.
- Rugged & Portable – Compact design (520 × 80 × 38 mm) with lightweight body (~350g) for convenient field use.
- Wide Operating Range – Performs efficiently in temperatures from -25°C to +55°C and a pressure range of 86–106 kPa.
- Versatile Applications – Ideal for oil & gas, mining, chemical plants, industrial safety checks, and confined space monitoring.
Technical Specifications
| Detectable Gas | Combustible Gas (e.g., methane, propane, etc.) |
| Detection Principle | Catalytic Combustion Sensor |
| Sampling Method | Natural Diffusion |
| Detection Range | 0–100% LEL |
| Accuracy/Error | < 5% LEL |
| Response Time (T90) | < 30 seconds |
| Display Method | Digital Tube Display |
| Power Source | Lithium Battery DC 3.7V / 2200 mAh |
| Operating Time | ≥ 8 hours (continuous use) |
| Operating Temperature | -25°C to +55°C (-13°F to 131°F) |
| Operating Humidity | <95% RH (non-condensing) |
| Working Pressure | 86 – 106 kPa |
| Protection Level | IP54 |
| Dimensions (L × W × H) | 520 × 80 × 38 mm (20.47 × 3.15 × 1.50 in) |
| Weight | Approx. 350 g (0.77 lb) |
