Overview

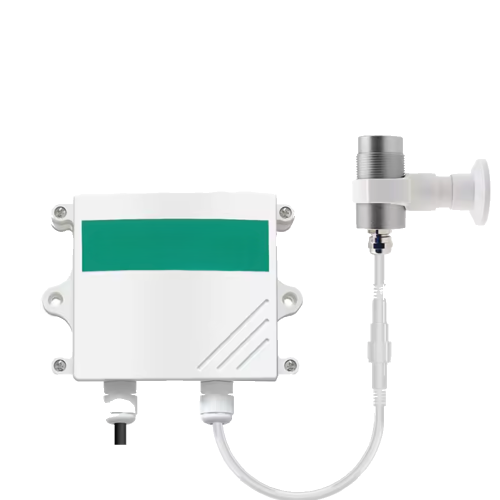

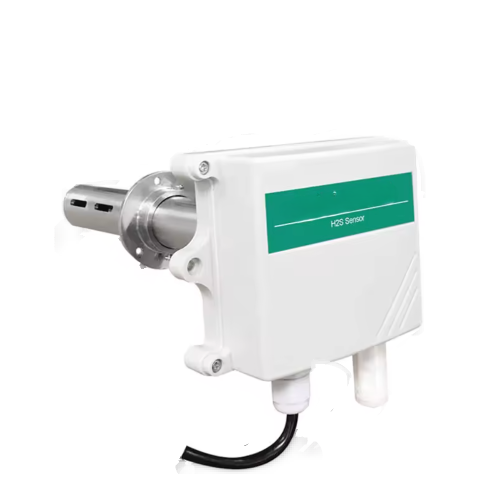

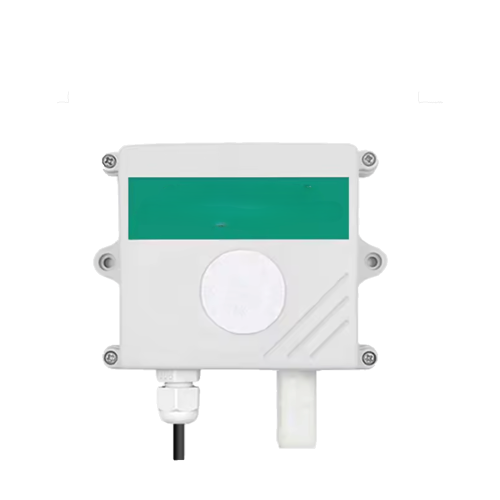

The H₂S Transmitter is a professional-grade gas detection solution engineered for precise and reliable monitoring of hydrogen sulfide in industrial environments. Offering a measurement range of 0–100 ppm with a high accuracy of ±3% FS and resolution of 1 ppm, it ensures consistent performance for critical safety applications.Designed for seamless integration, the transmitter supports multiple output options (RS485, 4-20mA, 0-5V, 0-10V), making it compatible with a wide range of control and monitoring systems. With low power consumption, a rapid response time of ≤35 seconds, and excellent stability (≤2% signal drift per month), it is optimized for continuous operation in demanding environments.Built to withstand harsh conditions, the device operates within a temperature range of -20°C to 50°C, humidity tolerance of 15–90% RH (non-condensing), and a pressure range of 90–110 kPa. Its long service life (≥24 months) and modular design further enhance reliability and ease of maintenance.Compact, durable, and highly efficient, this H₂S transmitter is ideally suited for use in oil and gas, chemical processing, wastewater treatment, and other high-risk industrial sectors where safety and accuracy are paramount.
Features
- Accurate Detection: Measures hydrogen sulfide (H₂S) concentration from 0–100 ppm with ±3% FS accuracy and 1 ppm resolution.
- Fast Response: Quick detection with a response time of ≤35 seconds.
- Flexible Outputs: Supports multiple output signals — RS485, 4-20mA, 0-5V, 0-10V — for seamless integration.
- Low Power Consumption: Energy-efficient operation with 0.12W (RS485) and 0.25W (analog outputs).
- Reliable Stability: Maintains performance with ≤2% signal drift per month.
- Durable Design: Operates in harsh environments — 20°C to 50°C, 15–90% RH (non-condensing), and 90–110 kPa pressure.
- Long Service Life: Sensor lifespan of ≥24 months with minimal maintenance.
- Modular & Replaceable Sensor: Easy maintenance and calibration support.
- Compact & Lightweight: Ensures simple installation in industrial settings.
Technical Specifications
| Power Supply | 10–30V DC (0–10V output requires 24V only) |
| Output Signal Options | RS485, 4–20 mA, 0–5V, 0–10V |
| Power Consumption | RS485: 0.12 W 4–20 mA / 0–5V / 0–10V: 0.25 W |
| Measuring Range | 0 – 100 ppm |
| Resolution | 1 ppm |
| Precision | ±3% Full Scale (F.S.) |
| Repeatability | ≤ 2% |
| Zero Drift | ±5 ppm |
| Stability | ≤ 2% signal value per month |
| Response Time (T90) | ≤ 35 seconds |
| Preheating Time | ≥ 5 minutes |
| Service Life | ≥ 24 months |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) |
| Operating Humidity | 15% – 90% RH (non-condensing) |
| Operating Pressure Range | 90 – 110 kPa |
