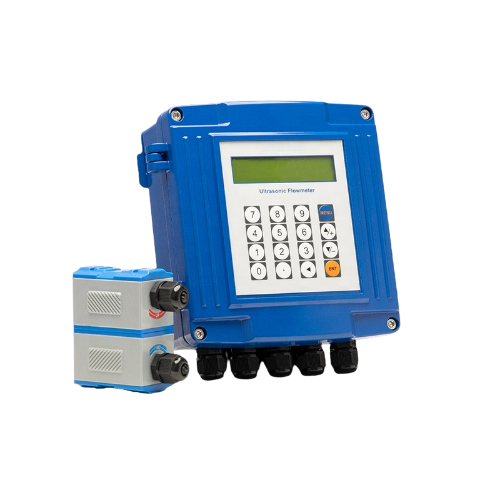

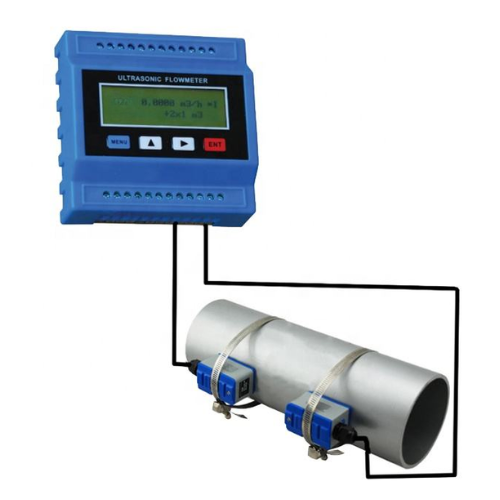

High-Accuracy Ultrasonic Flow Meter with Clamp-On Design – Agro Enviro Tests

High-accuracy ultrasonic flow meter with clamp-on design, ±1% accuracy, 4-20mA output, durable and easy to install.

SKU: Agro Enviro Tests-UFM-021 Categories: , , ,

Features

  • Clamp-on ultrasonic flow meter
  • Accuracy: ±1%, Repeatability: 0.2%
  • Velocity range: 0.03–±32 m/s
  • Fast measurement period: 0.5s
  • Outputs: 4-20mA, RS485
  • Power supply: 220VAC / 8–36VDC
  • Wide temp range: -40~+160℃
  • Compact, durable ABS & metal design



Technical Specification

Specification Details
Host Principle Transit-time ultrasonic flowmeter
Accuracy ±1%
Signal Output 1 way 4–20mA output, resistance 0–1K, accuracy 0.1% (optional) 1 way OCT pulse output
Display 2×20 character LCD with backlight, supports Chinese, English, Italian
Signal Input 3 way 4–20mA input, accuracy 0.1% (for temperature, pressure, liquid level)
Data Interface Insulated RS485 serial interface, supports MODBUS, software upgrade via PC
Special Cable Twisted-pair cable ≤164 ft (50 m) With RS485, transmission distance >3280 ft (1000 m)
Pipe Installation Materials: Steel, stainless steel, cast iron, copper, cement, PVC, aluminum
Measuring Medium Water, seawater, alcohol, acid, alkali, wastewater, beer, oil (single liquid capable of transmitting sound waves)
Flow Rate 0 to ±7 m/s (0 to ±22.97 ft/s), forward and backward measurement
Medium Temperature -30 to 160 °C (-22 to 320 °F)
Turbidity ≤10000 ppm, fewer bubbles
Work Environment Protection grade: Host IP67, Sensor IP68 Host temperature: -20 to 60 °C (-4 to 140 °F)
