Overview

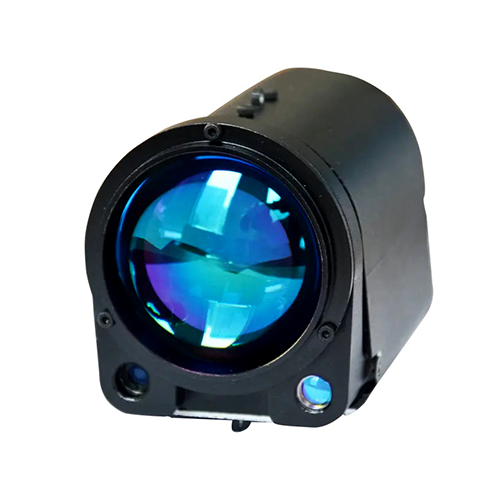

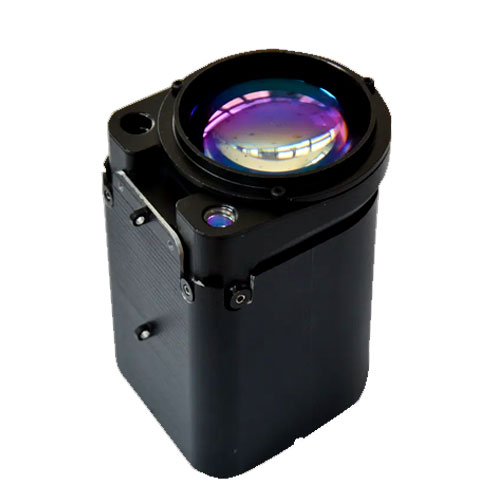

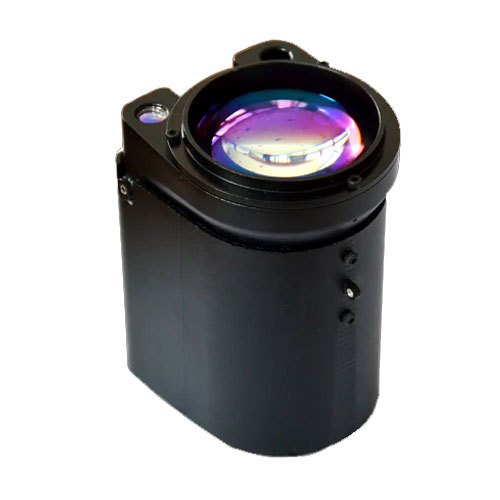

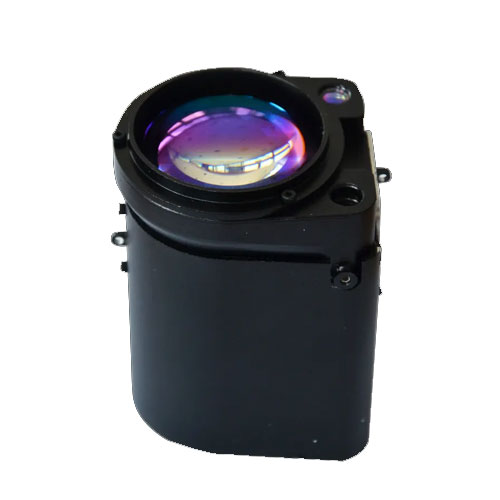

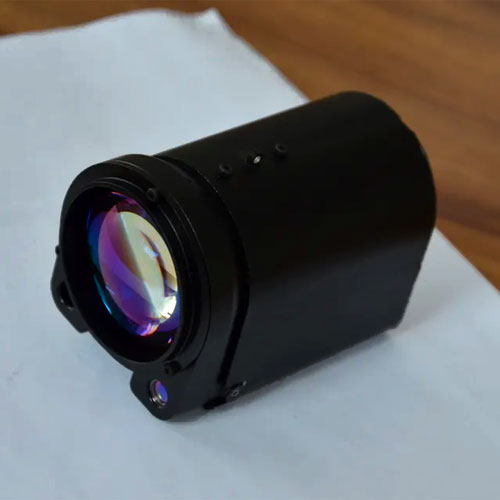

Agro Enviro Tests UAV Based Laser Methane Leakage Detector ensures urban gas supply, the scientific nature of the work, relying on modern computer communication technology and sensor technology coupled with UAV remote sensing technology, the implementation of unmanned remote real-time monitor of gas pipeline, and can automatically transfer to the competent department at all levels, real time monitoring of gas transmission pipeline, city gas pipeline safety, and other information.
Features
• Timely detection of pipe network faults
• Improve maintenance efficiency
• Reduce loses, costs and improve efficiency
• Ensures the safety of gas transmission and supply
• Achieve scientific early warning
Technical Specification
| Measure range | 0 % to 100 % LEL |
| Response speed | 0.1 s |
| Working temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
| Operating humidity | < 80 % rh, non-condensing |
| Alarm type | Sound and light alarm |
| Power | Real-time 5 V power supply |
| Detection principle | Laser detection |
| Size | 3.18 in x 2.71 in x 1.85 in (81 mm x 69 mm x 47 mm) |
| Weight | 1.10 lb (0.5 kg) |
