Overview

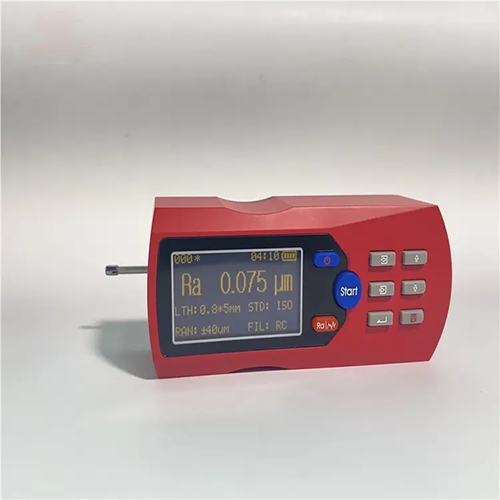

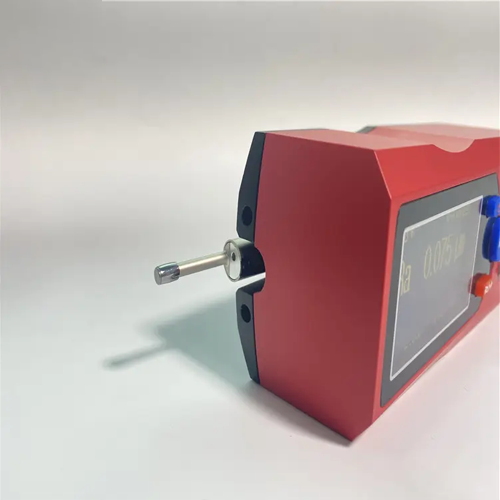

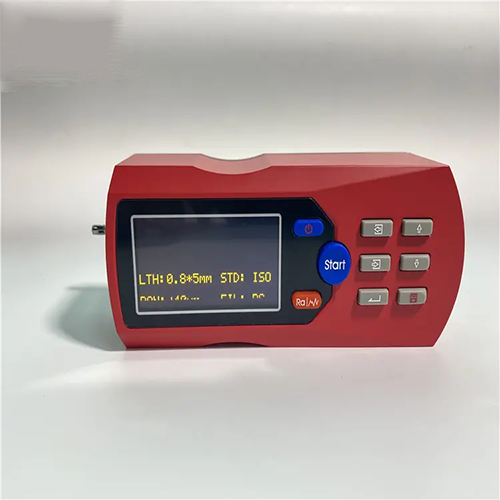

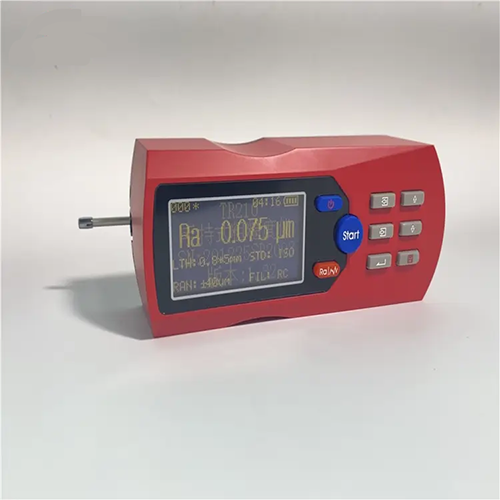

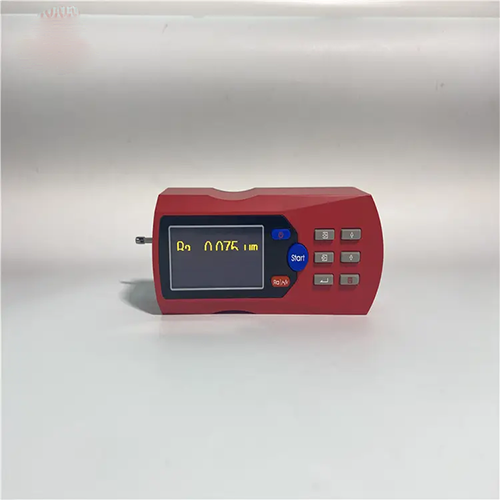

Agro Enviro Tests Surface Roughness tester is suitable for use in industries requiring surface roughness such as shot blasting and sandblasting industry, printing industry, spraying anticorrosion industry, etc. The corresponding parameters are calculated according to the selected measurement conditions, and all the measurement parameters are clearly displayed on the LCD.
Features
- The test method can directly measure the height of the peak
- The built-in sharp stylus of the instrument feels the roughness
- The roughness of the measured surface of the workpiece
- The signal enters the data acquisition system filtering
- High-precision inductive sensor.
- Integrated design, small size, light weight, and use.
- With automatic shutdown function.
- With metric system conversion function.
- With average calculation function.
- Adopt USB data cable output to communicate with PC
Technical Specification
| Range | 0 µm to 800 µm/29.5 mils |
| Accuracy | ±5% or ±5 µm, (whichever is the greater) |
| Resolution | 0.1 µm / 1 µm |
| 0.1 mils | |
| Principle | Inductance Type |
| Operating | Temperature: 32 °F to 122 °F (0 °C to 50 °C) |
| Conditions | Humidity: <80% RH |
| Power Supply | 4 x 1.5 V AAA (UM 4) Battery |
| Standard | Main Unit |
| Accessories | Sensor
Standard Sample Plate Carrying Case (B 04) Operation Manual |
| Optimal | USB Cable with Software |
| Accessories | Adapter with Software |
| Dimensions | 4.9 in x 2.5 in x 1.1 in (126 mm x 65 mm x 28 mm) |
| Weight | 0.6 lb (280 g) |
