Overview

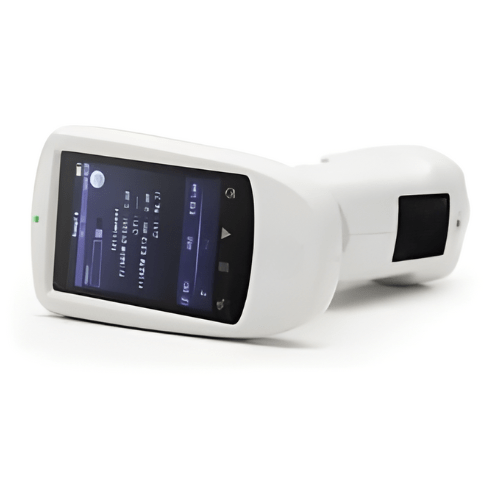

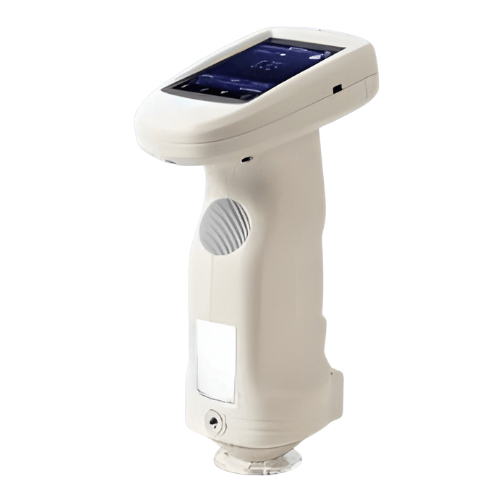

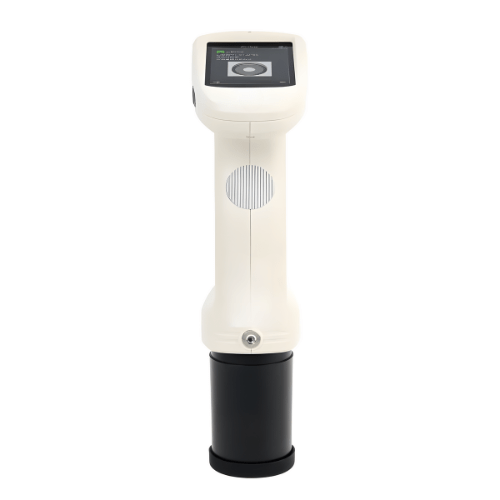

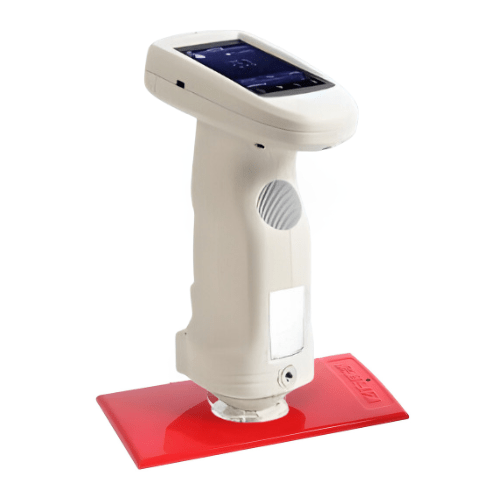

Agro Enviro Tests handheld spectrophotometer colorimeter can accurately measure the SCI and SCE reflectance data of samples or fluorescent samples and can accurately measure and express various color difference formulas and color indexes in various color spaces. It can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system. It is also widely used in the color quality control of various products. It is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.
Features
- Adopt LED light source with high life and low power consumption
- Customized one 0.31 in (8 mm) or 0.15 in (4 mm) aperture
- Dual optical path system
- Accurate spectrum and lab data
- High hardware configuration
- USB interface, convenient for expansion of various functions
- Super dirt resistant and stable standard white calibration board
- Large capacity storage space
- 2 ° or 10 ° standard observer’s angles
- Multiple light source modes
- Multiple surface color systems
- Camera locating position and stabilizer cross measurement position
- PC software has powerful function expansion
Technical Specifications
| Optical Geometry | Reflect di per 8 °, de per 8 ° (diffused illumination, 8-degree viewing angle)
SCI (specular component included) or SCE (specular component excluded) |
| Characteristic | double apertures for accurate color analysis and transmission in laboratory, used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement |
| Integrating Sphere Size | 1.5 in (40 mm) |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400 nm to 700 nm |
| Wavelength Interval | 10 nm |
| Semi bandwidth | 10 nm |
| Measured Reflectance Range | 0% to 200% |
| Measuring Aperture | MAV 0.31 in (8 mm) or 0.39 in (10 mm), SAV 0.15 in (4 mm) or 0.19 in (5 mm) |
| Specular Component | SCI and SCE |
| Observer Angle | 2 ° or 10 ° |
| Measuring Time | About 1.5 seconds (Measure SCI and SCE about 3.2 seconds) |
| Inter-instrument Error | MAV or SCI, Within E x ab 0.15% (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single measurement, average measurement (2 times to 99 times) |
| Locating Method | Camera locating, stabilizer cross position |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |

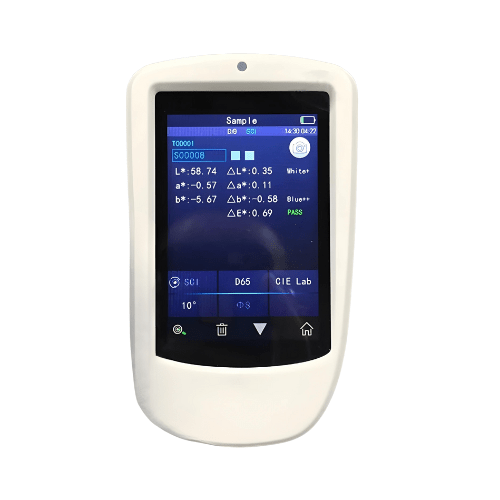

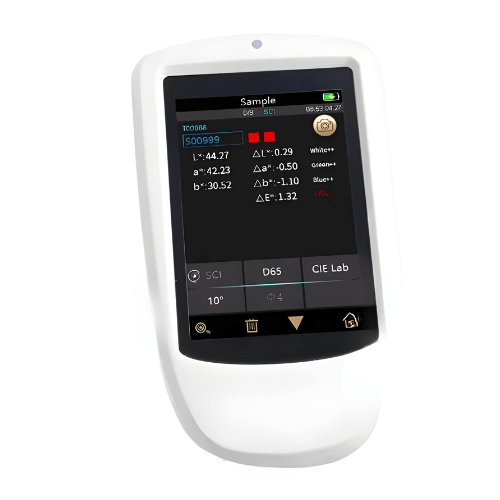

| Displayed Data | 3.5 in (8.8 cm) TFT color LCD, capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 pieces, sample 30000 pieces |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating altitude | < 1.2 mi (< 2000 m) |
| Operating temperature range | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating humidity range | 0% to 85% RH (no condensation) |
| Storage temperature range | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage humidity range | 0% to 85% RH (no condensation) |
| Dimension | 5 in x 2.9 in x 8.5 in (129 mm x 76 mm x 217 mm) |
| Weight | Approximately 21.1 oz (600 g) |
