Overview

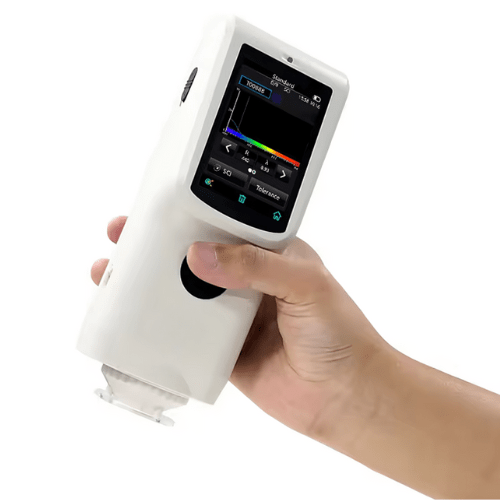

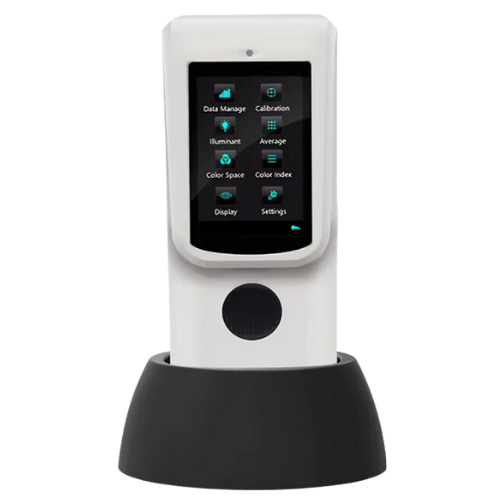

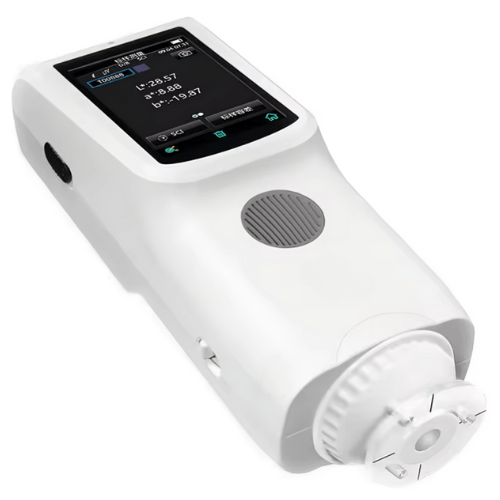

Agro Enviro Tests color sensor colorimeter is a two-in-one spectrophotometer and spectro-colorimeter, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high-cost performance. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.04. It can be used with PC and APP software for more functions.
Technical Specifications
| Display Mode/Color Space | CIE LAB LCh |
| Illuminating/Viewing Geometry | d/8 |
| Color Difference Formulas | DELTA E*ab ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00 DINΔE99 ΔE(Hunter) (Part of them are only implemented in APP) |
| Storage | 500 standard samples, 1,0000 samples, APP mass storage |
| Power Source | Rechargeable lithium-ion battery 3.7 V 3200 mAh |
| Lamp Life | 3 years, more than 1 million measurements |
| Pc Software | APP Software |
| Optical Geometry | D/8 (diffuse illumination, 8° direction reception) SCI measurement Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Application | Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries. Find the color card through the mobile APP |
| Integrating Sphere Size | 40 mm |
| Light Source Device | Full spectrum LED light source |
| Spectroscopic Method | 8 channel filter optical splitting |
| Sensor | CMOS Sensor |
| Spectralrange | 400 nm to700 nm |
| Measurement Aperture | 0.31 in (8 mm) or 0.16 in (4 mm) |
| Light-Included Mode | SCI |
| Color Spaces | CIE LAB XYZ Yxy LCh CIE LUV s-RGB HunterLab βxy DIN Lab99 (Part of them are only implemented in APP) |
| Othercolorimetricdata | WI (ASTM E313, CIE/ISOAATCCHunter) YI (ASTM D1925，ASTM 313) Mt (metamerism Index) Staining Fastness Color Fastness Color Strength Opacity 555 Index Munsell(C/2) Spectro Curve (Part of them are only implemented in APP) |
| Division Value | 0.01 |
| Observer | 2 °or 10 ° |
| Illuminant | D65, A, F2(CWF) |
| Displayed Data | Reflectivity (at 3 specific wavelengths specified by the user) chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset |
| Inter-Instrument Error | MAV/SCI, within ΔE*ab 0.35 (Average for 12 BCRA Series II color tiles) |
| Power Source | Rechargeable lithium-ion battery 3.7 V 3200 mAh |
| Measurement Time | Approx. 1.5 s |
| Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Accuracy | 0.1 |
| Measurement Method | Single measurement average measurement (2 to99 times) |
| Locate Mode | Light Spot Positioning |
| Illuminant Life Span | 5 year, more than 3 million times measurements |
| Screen | TFT true color 3.5inch, capacitive touch screen |
| Interface | USB (charge only); Bluetooth 5.0 Button |
| Data Storage | 500 standard samples, 1,0000 samples |
| Data Viewing | APP supports massive search; Device supports all data viewing |
| Standard Accessories | Power adapter manual APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ 0.31 in (8 mm) flat aperture |

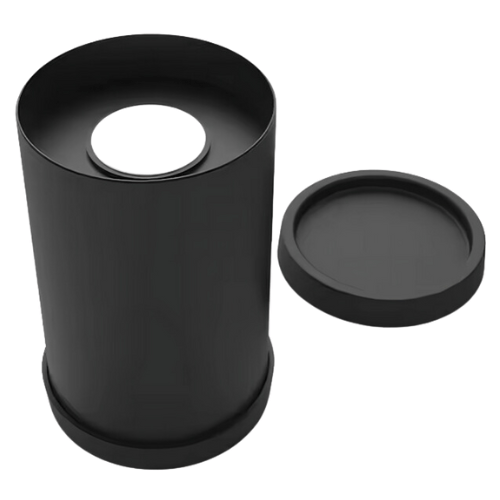

| Optional Accessories | USB Micro Printer Powder test box |
| Note | Technical parameters are for reference only subject to actual product |
| Operating Environment | Temperature: 32 °F to 104 °F (0 °C to 40 °C); Humidity: 0 % to85% (No Condensation) Altitude: less than 1.24 mi (2000 m) |
| Storage Environment | – 4°F to 122 °F (- 20 ℃ to 50 ℃) 0 %R H to 85 % RH (no condensation) |
| Size | 3.18 in X 2.79 in X 8 .42 in (81 mm X 71 mm X 214 mm) |
| Weight | About 0.35 lb (460 g) |
