Overview

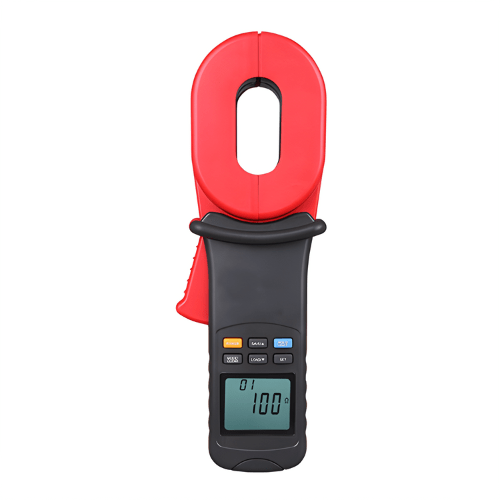

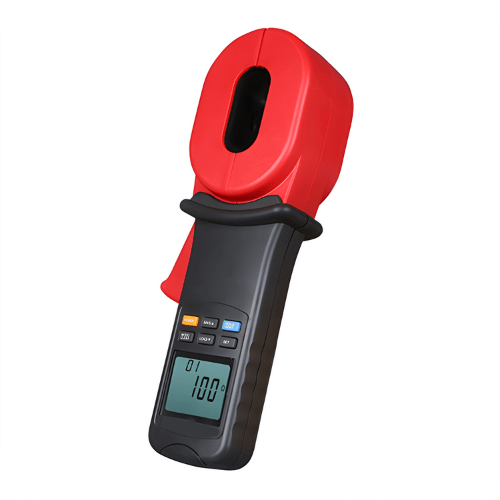

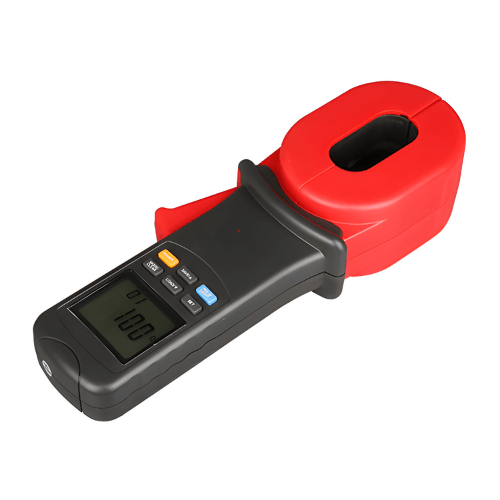

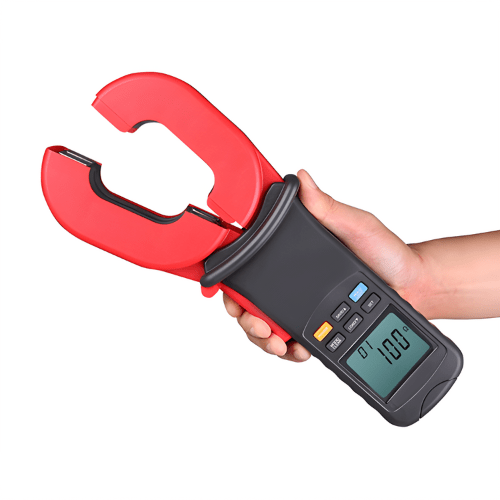

Agro Enviro Tests clamp earth environmental tester can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01 Ω with a resolution of 0.001 Ω. It can also measure leakage currents up to 30 A. The double insulation design makes it a durable tool for outdoor work and effective in blocking interference signals from the environment.
Technical Specifications
| Power | 1.5 V battery (LR6) x 4 |
| Standard Accessories | Batteries, test ring, English manual |
| Standard Quantity Per Carton | 5 pcs |
| Earth Ground Resistance (Ω) | 0.01 Ω to 0.099 Ω, 0.1 Ω to 0.99 Ω, 1 Ω to 49.9 Ω, 800 Ω to 1200 Ω |
| Product Size | 11.54 in x 3.54 in x 2.59 in (293 mm x 90 mm x 66 mm) |
| Jaw Opening | 1.102 in (28 mm) |
| Display | 1.85 in x 1.12 in (47 mm x 28.5 mm) |
| Product Net Weight | 2.91 lb (1.32 kg) |
