Overview

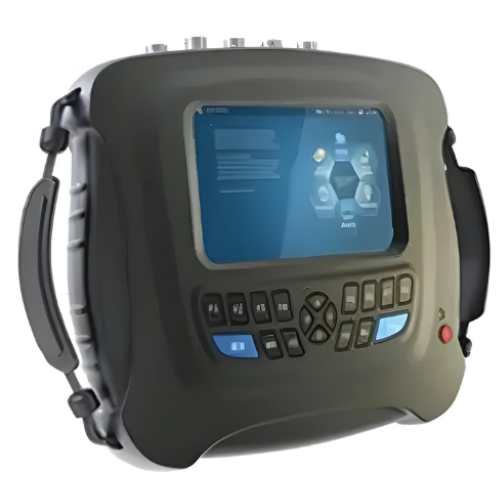

Agro Enviro Tests 4 Channels Vibration Analyzer features a versatile input port that can connect to various types of sensors. It utilizes advanced microelectronics, signal analysis, and fault diagnosis technologies, integrating equipment condition monitoring and fault diagnosis capabilities into a single unit.
It includes the function of four-channel vibration data acquisition, which can complete vibration measurement on-site and automatically store tens of thousands of vibration feature values and spectra of measurement points. It can also display one to four channels of waveforms and spectra synchronously on-site. Additionally, it can serve as an imbalance detector, completing single- and double-sided dynamic balance verification on-site.
Features
- Multifunctional Input Ports for Various Sensors: (Piezoelectric, Electromagnetic, Eddy Current, ICP)
- 5-inch color display
- Huge storage space with a 16GB hard drive that can automatically store tens of thousands of vibration feature values and spectra of measurement points– Four channels synchronous acquisition with 24-bit AD sampling
- 1600, 3200, 6400 or 12800 lines FFT spectrum
- USB 2.0 communication interface
- Analysis frequency up to 35 KHZ with 8 optional levels
- Full-function high-speed dynamic analysis, including amplitude spectrum, power spectrum, logarithmic spectrum, etc.
- Display various time domain feature values, including peak value, peak-peak value, effective value, peak factor, skewness, kurtosis, etc
- Data/records storage and playback for rotor balance
- Test weight can be selectively removed or retained and its quality can be estimated
- Speed measurement, noise measurement, phase measurement, phase diagnosis
- Manual setting of trigger threshold (large, medium, small)
- It can be equipped with the EMD software of equipment management system (including bearing database)
Technical Specifications
| Channel quantity | Four vibration channels, one tachometer channel |
| Main functions | Single-channel or multi-channel synchronous acquisition of various parameters including acceleration, velocity, displacement, and axial envelope |
| Accuracy | ±5% |
| A/d conversion | 24-bit AD sampling |
| Lcd display | Supports touch screen input, color 5-inch display |
| Tachometer range | 120—12000 rpm |
| Temperature range of instrument | -20—55 °C |
| Temperature range of sensor | -20°—120 °C |
| Rechargeable battery | Rechargeable lithium battery 7.2V, 6800mA; charging time 7 hours, continuous working time 8 hours |
| Charger | 8.V, 2A |
| Diagnostic library | Bearing database |
| Measurement function and range | Simultaneously measures four parameter values and alarm parameter spectra with a sensitivity of 100 mv/g
acceleration of 0.1——199.99 m/s² velocity of 0.1——199.99 mm/s displacement of 1um——1999um axial envelope value of 0.1——30 m/s² |
| Software analysis function | Vibration spectrum and time domain waveform analysis, envelope analysis, precise fault diagnosis function for rolling bearings (four parts) Separate fault diagnosis function: The instrument hardware has a separate fault diagnosis function for collecting other parameter spectra, cepstrum, logarithmic spectrum, and power spectrum diagnosis (real-time acquisition and real-time display) |
| Storage capacity | 16G |
| External interface | Charging and communication USB2.0 |
| Report output function | Detects data report output |
| Vibration measurement frequency response range: | 2—35KHz（sample frequency：89.6KHz) |
| Connectable sensor types: | Piezoelectric acceleration sensor, ICP sensor, Magnetoelectric velocity sensor, Eddy current sensor |
